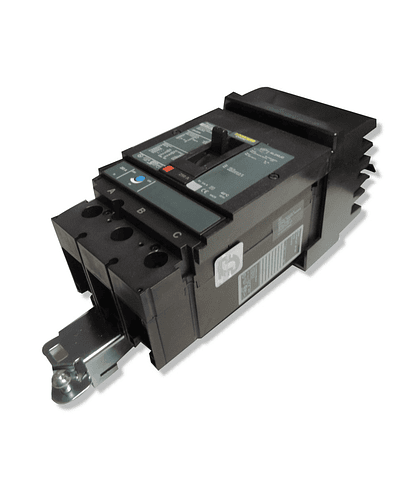

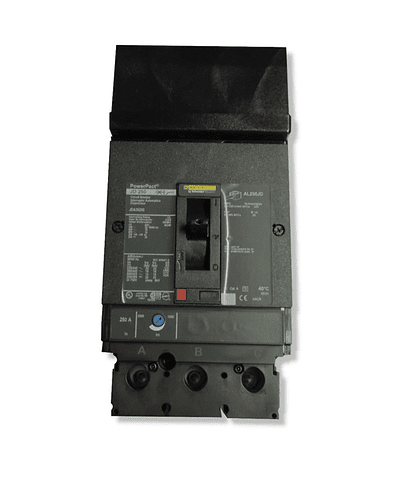

Thermomagnetic switch model HJA

Thermomagnetic switch model HJA

16,663.38 MXN
Sqare-D (Schneider)

Models:

  • HJA36015
  • HJA36020
  • HJA36030
  • HJA36040
  • HJA36050
  • HJA36060
  • HJA36070
  • HJA36080
  • HJA36090
  • HJA36100
  • HJA36125
  • HJA36150


    [In] rated current
    15 A, 20 A, 30 A, 40 A, 50 A, 60 A, 70 A, 80 A , 90 A, 100 A, A, 125 A, 150 A.
    Number of poles 3P
    cutting power 65 kA at 480 V AC
    25 kA at 600 V AC
    100 kA at 240 V AC and 20 kA at 250 V DC
    [Ue] rated voltage for use 250 V DC
    600 V AC
    mount type I-Line < / td>
    electrical connection I-Line connection line
    Lugs ((*)) load ((*))
    < / td>
    AWG gauge AWG 14 ... AWG 3/0 (aluminum / copper)
    phase connection Abc
    minimum tripping magnetic intensity 900 A
    magnetic firing intensity 1700 A < / table>
